pgr_degree

pgr_degree —对于无向图中的每个顶点，返回与该顶点关联的边的计数。

Proposed

Warning

下一版本的拟议功能。

• 它们并未正式出现在当前版本中。

• 它们可能会正式成为下一个版本的一部分：

  • 这些函数使用 ANY-INTEGER 和 ANY-NUMERICAL

  • 名字可能不会改变。（但仍然有可能改变）

  • 签名可能不会改变。（但仍然有可能改变）

  • 功能可能不会改变。（但仍然有可能改变）

  • pgTap 测试已经完成。 但可能需要更多。

  • 文档可能需要完善。

可用性

Version 3.8.0

• Error messages adjustment.

• New signature with only Edges SQL.

• 函数正式发布。

版本 3.4.0

• 新提议的函数。

描述

Calculates the degree of the vertices of an undirected graph

The degree (or valency) of a vertex of a graph is the number of edges that are incident to the vertex.

• 适用于 无向 图。

• A loop contributes 2 to a vertex's degree.

• A vertex with degree 0 is called an isolated vertex.

  • Isolated vertex is not part of the result

• Vertex not participating on the subgraph is considered and isolated vertex.

• There can be a dryrun execution and the code used to get the answer will be shown in a PostgreSQL NOTICE.

  • The code can be used as base code for the particular application requirements.

• No ordering is performed.

签名

pgr_degree(Edges SQL , [dryrun])

pgr_degree(Edges SQL , Vertex SQL, [dryrun])

RETURNS SETOF (node, degree)

OR EMPTY SET

边

pgr_degree(Edges SQL , [dryrun])

RETURNS SETOF (node, degree)

OR EMPTY SET

example:

Get the degree of the vertices defined on the edges table

SELECT * FROM pgr_degree($$SELECT id, source, target FROM edges$$)
ORDER BY node;
 node | degree
------+--------
    1 |      1
    2 |      1
    3 |      2
    4 |      1
    5 |      1
    6 |      3
    7 |      4
    8 |      3
    9 |      1
   10 |      3
   11 |      4
   12 |      3
   13 |      1
   14 |      1
   15 |      2
   16 |      3
   17 |      2
(17 rows)

Edges and Vertices

pgr_degree(Edges SQL , Vertex SQL, [dryrun])

RETURNS SETOF (node, degree)

OR EMPTY SET

示例:

提取顶点信息

pgr_degree can use pgr_extractVertices embedded in the call.

For decent size networks, it is best to prepare your vertices table before hand and use it on pgr_degree calls. (See Using a vertex table)

Calculate the degree of the nodes:

SELECT * FROM pgr_degree(
  $$SELECT id FROM edges$$,
  $$SELECT id, in_edges, out_edges
    FROM pgr_extractVertices('SELECT id, geom FROM edges')$$);
 node | degree
------+--------
    1 |      1
    2 |      1
    3 |      2
    4 |      1
    5 |      1
    6 |      3
    7 |      4
    8 |      3
    9 |      1
   10 |      3
   11 |      4
   12 |      3
   13 |      1
   14 |      1
   15 |      2
   16 |      3
   17 |      2
(17 rows)

参数

参数	类型	描述
Edges SQL	TEXT	Edges SQL 如下所述
Vertex SQL	TEXT	Vertex SQL 如下所述

可选参数

参数	类型	默认	描述
dryrun	BOOLEAN	false	当为真时，不要处理查询，而是获取一个通知（NOTICE）来显示查询的结果。

内部查询

Edges SQL

For the Edges and Vertices signature:

列	类型	描述
id	BIGINT	边的标识符。

For the Edges signature:

列	类型	描述
id	BIGINT	边的标识符。
source	BIGINT	边的第一个端点顶点的标识符。
target	BIGINT	边的第二个端点顶点的标识符。

Vertex SQL

For the Edges and Vertices signature:

列	类型	描述
id	BIGINT	边的第一个端点顶点的标识符。
in_edges	BIGINT[]	以顶点 id 作为*第一个端点*的边的标识符数组。 当缺失时， out_edges 必须存在。
out_edges	BIGINT[]	以顶点 id 作为*第二个端点*的边的标识符数组。 缺失时， in_edges 必须存在。

结果列

列	类型	描述
node	BIGINT	顶点标识符
degree	BIGINT	与顶点 id 关联的边数

其他示例

Degree of a loop

A loop contributes 2 to a vertex's degree.

Using the Edges signature.

SELECT * from pgr_degree('SELECT 1 as id, 2 as source, 2 as target');
 node | degree
------+--------
    2 |      2
(1 row)

Using the Edges and Vertices signature.

SELECT * FROM pgr_degree(
  $$SELECT 1 AS id$$,
  $$SELECT id, in_edges, out_edges
     FROM pgr_extractVertices('SELECT 1 as id, 2 as source, 2 as target')$$);
 node | degree
------+--------
    2 |      2
(1 row)

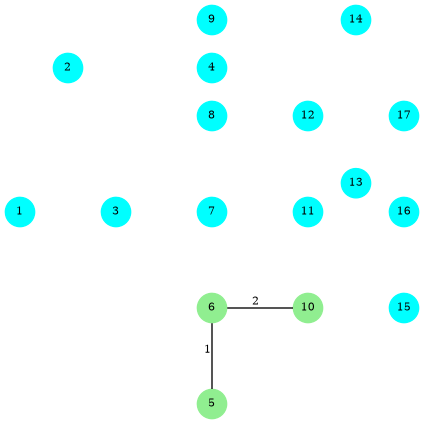

子图的度数

For the following is a subgraph of the 示例数据:

• $E=\{(1,5\leftrightarrow 6),(1,6\leftrightarrow 10)\}$

• $V=\{1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17\}$

The vertices not participating on the edge are considered isolated

• their degree is 0 in the subgraph and

• their degree is not shown in the output.

Using the Edges signature.

SELECT * FROM pgr_degree($$SELECT * FROM edges WHERE id IN (1, 2)$$);
 node | degree
------+--------
   10 |      1
    6 |      2
    5 |      1
(3 rows)

Using the Edges and Vertices signature.

SELECT * FROM pgr_degree(
  $$SELECT * FROM edges WHERE id IN (1, 2)$$,
  $$SELECT id, in_edges, out_edges FROM vertices$$);
 node | degree
------+--------
    5 |      1
    6 |      2
   10 |      1
(3 rows)

Using a vertex table

For decent size networks, it is best to prepare your vertices table before hand and use it on pgr_degree calls.

Extract the vertex information and save into a table:

CREATE TABLE vertices AS
SELECT id, in_edges, out_edges
FROM pgr_extractVertices('SELECT id, geom FROM edges');
SELECT 17

Calculate the degree of the nodes:

SELECT * FROM pgr_degree(
  $$SELECT id FROM edges$$,
  $$SELECT id, in_edges, out_edges FROM vertices$$);
 node | degree
------+--------
    1 |      1
    2 |      1
    3 |      2
    4 |      1
    5 |      1
    6 |      3
    7 |      4
    8 |      3
    9 |      1
   10 |      3
   11 |      4
   12 |      3
   13 |      1
   14 |      1
   15 |      2
   16 |      3
   17 |      2
(17 rows)

模拟执行

要获取用于生成顶点信息的查询，请使用 dryrun => true。

结果可作为基础代码，根据后台开发需要进行改进。

SELECT * FROM pgr_degree(
  $$SELECT id FROM edges WHERE id < 17$$,
  $$SELECT id, in_edges, out_edges FROM vertices$$,
  dryrun => true);
NOTICE:
    WITH

    -- a sub set of edges of the graph goes here
    g_edges AS (
      SELECT id FROM edges WHERE id < 17
    ),

    -- sub set of vertices of the graph goes here
    all_vertices AS (
      SELECT id, in_edges, out_edges FROM vertices
    ),

    g_vertices AS (
      SELECT id,
        unnest(
          coalesce(in_edges::BIGINT[], '{}'::BIGINT[])
          ||
          coalesce(out_edges::BIGINT[], '{}'::BIGINT[])) AS eid
      FROM all_vertices
    ),

    totals AS (
      SELECT v.id, count(*)
      FROM g_vertices v
      JOIN g_edges e ON (v.eid = e.id) GROUP BY v.id
    )

    SELECT id::BIGINT, count::BIGINT FROM all_vertices JOIN totals USING (id)
    ;
 node | degree
------+--------
(0 rows)

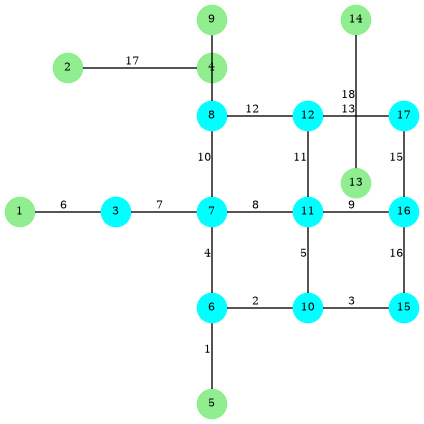

Finding dead ends

If there is a vertices table already built using pgr_extractVertices and want the degree of the whole graph rather than a subset, it can be forgo using pgr_degree and work with the in_edges and out_edges columns directly.

The degree of a dead end is 1.

获取死端：

SELECT id FROM vertices
WHERE array_length(in_edges || out_edges, 1) = 1;
 id
----
  1
  2
  5
(3 rows)

死端（Dead End）的形成条件

• 死端顶点（Dead End Vertex）的拓扑定义。

• The vertex is on the limit of the imported graph.

  • 如果导入了更大的图，则该顶点可能不会是死端

节点 $4$ 在查询中是一个死端，即使从视觉上看它是三条边的终点。

节点 $4$ 是死端还是非死端？

这个问题的答案将取决于应用情况。

• 有这么小的路边吗：

  • 这不允许车辆使用该视觉交叉路口？

  • 是否适用于行人，因此行人可以轻松地在小路边行走？

  • 电力和电线的应用是否可以轻松地延伸到小路边顶部？

• 是否有一个大悬崖，从鹰的角度看，死胡同靠近该路段？

Depending on the answer, modification of the data might be needed.

When there are many dead ends, to speed up processing, the 收缩 - 函数族 functions can be used to contract the graph.

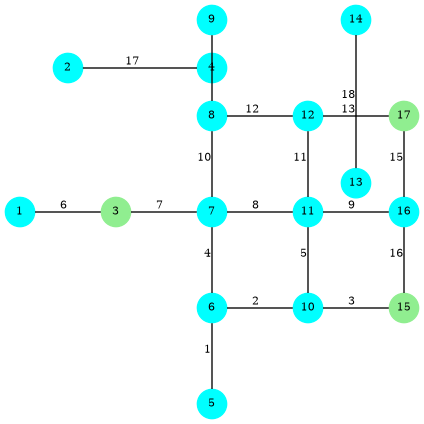

Finding linear vertices

The degree of a linear vertex is 2.

If there is a vertices table already built using the pgr_extractVertices

要获得线性边：

SELECT id FROM vertices
WHERE array_length(in_edges || out_edges, 1) = 2;
 id
----
  3
  9
 13
 15
 16
(5 rows)

当这些顶点表示减速带、停止信号，并且应用程序将其纳入考虑时，这些线性顶点是正确的。

When there are many linear vertices, that need not to be taken into account, to speed up the processing, the 收缩 - 函数族 functions can be used to contract the problem.
