pgr_lineGraph - 提议

pgr_lineGraph — 将给定图转换为其相应的基于边的图。

Warning

下一版本的拟议功能。

  • 它们并未正式出现在当前版本中。

  • 它们可能会正式成为下一个版本的一部分:

    • 这些函数使用 ANY-INTEGER 和 ANY-NUMERICAL

    • 名字可能不会改变。(但仍然有可能改变)

    • 签名可能不会改变。(但仍然有可能改变)

    • 功能可能不会改变。(但仍然有可能改变)

    • pgTap 测试已经完成。 但可能需要更多。

    • 文档可能需要完善。

可用性

  • 版本 3.7.0

    • Function promoted to proposed.

    • 适用于有向和无向图。

  • 版本2.5.0

    • 新实验功能。

描述

给定一个图 G,其线图 L(G) 是一个图,满足以下条件:

  • L(G) 的每个顶点代表 G 的一条边。

  • L(G) 的两个顶点相邻,当且仅当它们对应的边在 G 中共享一个共同端点时

主要特点是:

  • 适用于有向和无向图。

  • 结果中的 costreverse_cost 列表示边的存在性。

  • 当图形是有向的,结果也是有向的。

    • 要获取完整的线图,请在双向边上使用唯一标识符 (See Additional Examples).

  • 当图无向时,成本矩阵是对称的。

    • reverse_cost 始终为 1

Boost 图内部 Boost 图内部

签名

pgr_lineGraph(Edges SQL, [directed])
Returns set of (seq, source, target, cost, reverse_cost)
OR EMPTY SET
示例:

对于一个undirected graph(无向图),其边为 :math:'{2,4,5,8}'

SELECT * FROM pgr_lineGraph(
  'SELECT id, source, target, cost, reverse_cost
  FROM edges WHERE id IN (2,4,5,8)',
  false);
 seq | source | target | cost | reverse_cost
-----+--------+--------+------+--------------
   1 |      2 |      4 |    1 |           -1
   2 |      2 |      5 |    1 |           -1
   3 |      4 |      8 |    1 |           -1
   4 |      5 |      8 |    1 |           -1
(4 rows)

graph G {

   v6 [label=6,shape=circle;style=filled;fixedsize=true;width=.4;color=deepskyblue,pos="0,0!"];
   v7 [label=7,shape=circle;style=filled;fixedsize=true;width=.4;color=deepskyblue,pos="0,2!"];
   v10 [label=10,shape=circle;style=filled;fixedsize=true;width=.4;color=deepskyblue,pos="2,0!"];
   v11 [label=11,shape=circle;style=filled;fixedsize=true;width=.4;color=deepskyblue,pos="2,2!"];

   v7--v6 [color=blue];
   v7--v11 [color=blue];
   v10--v6 [color=blue];
   v10--v11 [color=blue];

   s2 [label="2",shape=circle;style=filled;width=.4;color=yellow,pos="1,0!"];
   s4 [label="4",shape=circle;style=filled;width=.4;color=yellow,pos="0,1!"];
   s5 [label="5",shape=circle;style=filled;width=.4;color=yellow,pos="2,1!"];
   s8 [label="8",shape=circle;style=filled;width=.4;color=yellow,pos="1,2!"];

   s2--s4 [color=red];
   s2--s5 [color=red];
   s4--s8 [color=red];
   s5--s8 [color=red];
}

参数

参数

类型

描述

Edges SQL

TEXT

Edges SQL 如下所述。

可选参数

类型

默认

描述

directed

BOOLEAN

true

  • true 时,该图被视为有 有向

  • 如果为 false ,则该图被视为 无向

内部查询

Edges SQL

类型

默认

描述

id

ANY-INTEGER

边的标识符。

source

ANY-INTEGER

边的第一个端点顶点的标识符。

target

ANY-INTEGER

边的第二个端点顶点的标识符。

cost

ANY-NUMERICAL

边(source, target)的权重

reverse_cost

ANY-NUMERICAL

-1

边(target, source)的权重

  • 当为负时:边( target, source )不存在,因此它不是图的一部分。

其中:

ANY-INTEGER:

SMALLINT, INTEGER, BIGINT

ANY-NUMERICAL:

SMALLINT, INTEGER, BIGINT, REAL, FLOAT

结果列

Returns set of (seq, source, target, cost, reverse_cost)

类型

描述

seq

INTEGER

1 开始的顺序值。

  • 给出边的本地标识符

source

BIGINT

当前边的源顶点的标识符。

  • 为负时:源是原始图中的反向边。

target

BIGINT

当前边的目标顶点的标识符。

  • 为负时:目标是原始图中的反向边。

cost

FLOAT

边 (source, target)的权重。

  • 当为负时:边(source, target)不存在,因此它不是图的一部分。

reverse_cost

FLOAT

边 (target, source)的权重。

  • 当为负时:边(target, source)不存在,因此它不是图的一部分。

其他示例

给定以下有向图

G(V,E)=G({1,2,3,4},{12,14,23,31,32,34,43})

digraph G {

   subgraph clusterA {
      style=invis;
      edge [arrowsize=0.5,color=blue];
      node [shape=circle;style=filled;fontsize=8;fixedsize=true;width=.4;color=deepskyblue];
      v1 [label=1,pos="0,2!"];
      v2 [label=2,pos="2,2!"];
      v3 [label=3,pos="2,0!"];
      v4 [label=4,pos="0,0!"];

      v1->{v2,v4} [color=blue];
      v3->{v2,v4} [dir=both,color=blue];
      v3->v1 [arrowsize=0.5,color=blue ];
   }
}

用共享边标识符定向表示

为了简化数据库中边表的设计,边的标识符采用3位数字表示:

百位:

源点

十位:

始终为 0,用作分隔符

个位:

目标顶点

在这张图片中,

  • 单向或双向箭头表示边表中的一条边(行)。

  • 黄色阴影中的数字是边缘标识符。

digraph G {

   subgraph clusterA {
      style=invis;
      edge [arrowsize=0.5,color=blue];
      node [shape=circle;style=filled;fontsize=8;fixedsize=true;width=.4;color=deepskyblue];
      v1 [label=1,pos="0,2!"];
      v2 [label=2,pos="2,2!"];
      v3 [label=3,pos="2,0!"];
      v4 [label=4,pos="0,0!"];

      v1->{v2,v4} [color=blue];
      v3->{v2,v4} [dir=both,color=blue];
      v3->v1 [arrowsize=0.5,color=blue ];
   }

   subgraph clusterB {
      style=invis;
      edge [arrowsize=0.5,color=red,fontsize=10,fontcolor=red];
      node [shape=circle;style=filled;fontsize=8;fixedsize=true;width=.4;color=yellow]

      s102 [label="102",pos="1,2!"];
      s104 [label="104",pos="0,1!"];
      s301 [label="301",pos="1,1!"];
      s203 [label="203",pos="2,1!"];
      s304 [label="304",pos="1,0!"];
   }
 }

当使用 reverse_cost 列时,两个边对会共享相同的标识符。

  • 23,32 用一条边行表示,标识符其 id=203

  • 34,43 用一条边的行表示,标识符为 id=304

图表的创建过程如下:

CREATE TABLE edges_shared (
    id BIGINT,
    source BIGINT,
    target BIGINT,
    cost FLOAT,
    reverse_cost FLOAT,
    geom geometry
);
CREATE TABLE
INSERT INTO edges_shared (id, source, target, cost, reverse_cost, geom) VALUES
  (102, 1, 2, 1, -1, ST_MakeLine(ST_POINT(0,  2), ST_POINT(2,  2))),
  (104, 1, 4, 1, -1, ST_MakeLine(ST_POINT(0,  2), ST_POINT(0,  0))),
  (301, 3, 1, 1, -1, ST_MakeLine(ST_POINT(2,  0), ST_POINT(0,  2))),
  (203, 2, 3, 1,  1, ST_MakeLine(ST_POINT(2,  2), ST_POINT(2,  0))),
  (304, 3, 4, 1,  1, ST_MakeLine(ST_POINT(0,  0), ST_POINT(2,  0)));

用共享边表示的有向图的线图

SELECT seq, source, target, cost, reverse_cost
FROM pgr_lineGraph(
  'SELECT id, source, target, cost, reverse_cost FROM edges_shared',
  true);
 seq | source | target | cost | reverse_cost
-----+--------+--------+------+--------------
   1 |    102 |    203 |    1 |           -1
   2 |    104 |    304 |    1 |           -1
   3 |    203 |    203 |    1 |            1
   4 |    203 |    301 |    1 |           -1
   5 |    203 |    304 |    1 |            1
   6 |    301 |    102 |    1 |           -1
   7 |    301 |    104 |    1 |           -1
   8 |    304 |    301 |    1 |           -1
   9 |    304 |    304 |    1 |            1
(9 rows)

  • 结果就是一个有向图。

  • 对于 seq=4 ,从:math:203 leftrightarrow 304 表示两条边

  • 所有其他的 seq 值都代表一条边。

  • costreverse_cost 的值表示边的存在。

    • 当为正数时:边缘存在。

    • 负数时:边缘不存在。

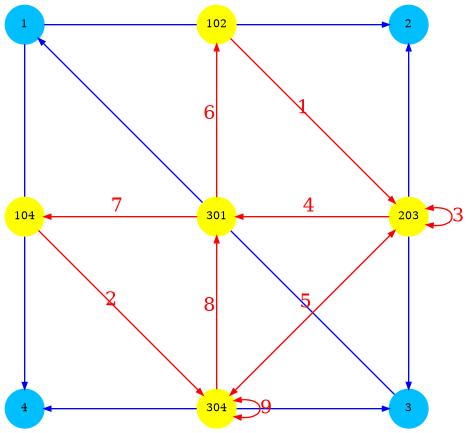

digraph G {

   subgraph clusterA {
      style=invis;
      edge [arrowsize=0.5,color=blue];
      node [shape=circle;style=filled;fontsize=8;fixedsize=true;width=.4;color=deepskyblue];
      v1 [label=1,pos="0,4!"];
      v2 [label=2,pos="4,4!"];
      v3 [label=3,pos="4,0!"];
      v4 [label=4,pos="0,0!"];

      v1->{v2,v4} [color=blue];
      v3->{v2,v4} [dir=both,color=blue];
      v3->v1 [arrowsize=0.5,color=blue ];
   }

   subgraph clusterB {
      style=invis;
      edge [arrowsize=0.5,labelfloat=true,color=red,fontsize=14,fontcolor=red];
      node [shape=circle;style=filled;fontsize=8;fixedsize=true;width=.4;color=yellow]

      s102 [label="102",pos="2,4!"];
      s104 [label="104",pos="0,2!"];
      s301 [label="301",pos="2,2!"];
      s203 [label="203",pos="4,2!"];
      s304 [label="304",pos="2,0!"];

      s102 -> s203 [label=1];
      s104 -> s304 [label=2];
      s203 -> s203 [label=3,dir=both];
      s203 -> s301 [label=4];
      s203 -> s304 [label=5,dir=both];
      s301 -> s102 [label=6];
      s301 -> s104 [label=7];
      s304 -> s301 [label=8];
      s304 -> s304 [label=9,dir=both];
   }
 }

作为有向图表示,并使用唯一的边标识符

为了简化数据库中边表的设计,边的标识符采用3位数字表示:

百位:

源点

十位:

始终为 0,用作分隔符

个位:

目标顶点

在这张图片中,

  • 单头箭头代表边表中的一条边(行)。

  • 没有双向头箭

  • 黄色阴影中的数字是边缘标识符。

digraph G {

   subgraph clusterA {
     style=invis;
     edge [arrowsize=0.5,color=blue];
     node [shape=circle;style=filled;fontsize=8;fixedsize=true;width=.4;color=deepskyblue]
     v1 [label=1,pos="0,2!"];
     v2 [label=2,pos="2,2!"];
     v3 [label=3,pos="2,0!"];
     v4 [label=4,pos="0,0!"];

     v1->{v2,v4};
     v3->{v1,v2,v4};
     {v4,v2}->v3;
   }

   subgraph clusterB {
     style=invis;
     edge [arrowsize=0.5,color=red,fontsize=6,fontcolor=red];
     node [shape=circle;style=filled;fontsize=8;fixedsize=true;width=.4;color=yellow]

     sa [label="102",pos="1,2!"];
     sb [label="203",pos="2.2,1!"];
     sc [label="302",pos="1.8,1!"];
     sd [label="104",pos="0,1!"];
     se [label="403",pos="1,0.2!"];
     sf [label="304",pos="1,-0.2!"];
     sg [label="301",pos="1,1!"];
   }
}

两对边共享相同的结束节点,不使用 reverse_cost 列。

  • 23,32:math:id=203 和:math:id=302

  • 34,43:math:id=304id=403

图表的创建过程如下:

CREATE TABLE edges_unique (
    id BIGINT,
    source BIGINT,
    target BIGINT,
    cost FLOAT,
    geom geometry
);
CREATE TABLE
INSERT INTO edges_unique (id, source, target, cost, geom) VALUES
  (102, 1, 2, 1, ST_MakeLine(ST_POINT(0,  2), ST_POINT(2,  2))),
  (104, 1, 4, 1, ST_MakeLine(ST_POINT(0,  2), ST_POINT(0,  0))),
  (301, 3, 1, 1, ST_MakeLine(ST_POINT(2,  0), ST_POINT(0,  2))),
  (203, 2, 3, 1, ST_MakeLine(ST_POINT(2,  2), ST_POINT(2,  0))),
  (304, 3, 4, 1, ST_MakeLine(ST_POINT(2,  0), ST_POINT(0,  0))),
  (302, 3, 2, 1, ST_MakeLine(ST_POINT(2,  0), ST_POINT(2,  2))),
  (403, 4, 3, 1, ST_MakeLine(ST_POINT(0,  0), ST_POINT(2,  0)));

用唯一边表示的有向图的线图

SELECT seq, source, target, cost, reverse_cost
FROM pgr_lineGraph(
  'SELECT id, source, target, cost FROM edges_unique',
  true);
 seq | source | target | cost | reverse_cost
-----+--------+--------+------+--------------
   1 |    102 |    203 |    1 |           -1
   2 |    104 |    403 |    1 |           -1
   3 |    203 |    301 |    1 |           -1
   4 |    203 |    304 |    1 |           -1
   5 |    301 |    102 |    1 |           -1
   6 |    301 |    104 |    1 |           -1
   7 |    302 |    203 |    1 |            1
   8 |    304 |    403 |    1 |            1
   9 |    403 |    301 |    1 |           -1
  10 |    403 |    302 |    1 |           -1
(10 rows)

  • 结果就是一个有向图。

  • 对于 seq=7203302 代表两条边。

  • 对于 seq=8 ,从 304403 表示两条边。

  • 所有其他的 seq 值都代表一条边。

  • costreverse_cost 的值表示边的存在。

    • 当为正数时:边缘存在。

    • 负数时:边缘不存在。

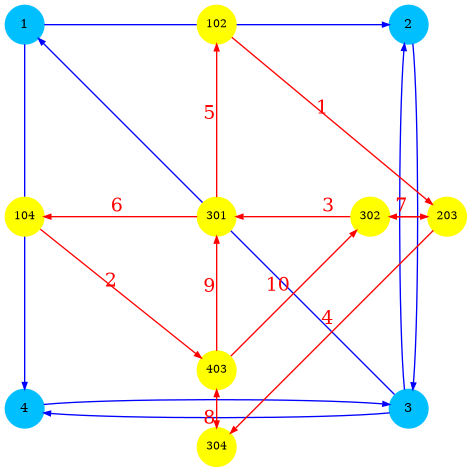

digraph G {

   subgraph clusterA {
     style=invis;
     edge [arrowsize=0.5,color=blue];
     node [shape=circle;style=filled;fontsize=10;fixedsize=true;width=.4;color=deepskyblue]
     v1 [label=1,pos="0,4!"];
     v2 [label=2,pos="4,4!"];
     v3 [label=3,pos="4,0!"];
     v4 [label=4,pos="0,0!"];

     v1->{v2,v4};
     v3->{v1,v2,v4};
     {v4,v2}->v3;
   }

   subgraph clusterB {
     style=invis;
     edge [arrowsize=0.5,labelfloat=true,color=red,fontsize=14,fontcolor=red];
     node [shape=circle;style=filled;fontsize=8;fixedsize=true;width=.4;color=yellow]

     sa [label="102",pos="2,4!"];
     sb [label="203",pos="4.4,2!"];
     sc [label="302",pos="3.6,2!"];
     sd [label="104",pos="0,2!"];
     se [label="403",pos="2,0.4!"];
     sf [label="304",pos="2,-0.4!"];
     sg [label="301",pos="2,2!"];

     sa -> sb [label=1];
     sd -> se [label=2];
     sb -> sg [label=3];
     sb -> sf [label=4];
     sg -> sa [label=5];
     sg -> sd [label=6];
     sc -> sb [dir=both,label=7];
     sf -> se [dir=both,label=8];
     se -> sg [label=9];
     se -> sc [label=10];
   }
}
